Component Class Reference

Base class for all components that can be attached to an Actor. Components define behavior or functionality and are updated each frame. They can respond to events such as start, update, end, or world transform changes. More...

#include <Component.h>

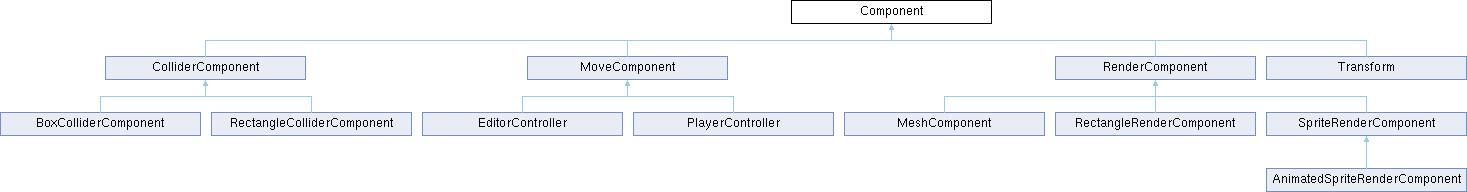

Inheritance diagram for Component:

Public Member Functions
	Component (Actor *pOwner, int pUpdateOrder=100)
	Constructor for Component.
virtual	~Component ()
virtual void	OnStart ()
	Called when the component is initialized (during actor start). This can be used to perform any setup operations for the component.
virtual void	Update ()
	Called every frame to update the component. This can be used to perform actions that need to be updated periodically.
virtual void	OnEnd ()
	Called when the component is about to be destroyed (during actor destruction). This can be used to clean up or release any resources.
virtual void	OnUpdateWorldTrandform ()
	Called when the world transform of the actor is updated. This allows the component to react to changes in the actor's world transform.
void	SetActive (bool isActive)
	Sets the active status of the component.
void	SetOwner (Actor *pOwner)
	Sets the actor that owns this component.
int	GetUpdateOrder () const
	Returns the update order of the component. Components with lower update orders are updated first.
Actor *	GetOwner () const
	Returns the actor that owns this component.

Protected Attributes
Actor *	mOwner = nullptr
	The actor that owns this component.

Detailed Description

Base class for all components that can be attached to an Actor. Components define behavior or functionality and are updated each frame. They can respond to events such as start, update, end, or world transform changes.

Constructor & Destructor Documentation

Component()

Component::Component	(	Actor *	pOwner,
		int	pUpdateOrder = 100 )

Constructor for Component.

Parameters

pOwner	The actor that owns this component.
pUpdateOrder	The update order priority for the component (default: 100).

~Component()

virtual Component::~Component ( )

inlinevirtual

Member Function Documentation

GetOwner()

Actor * Component::GetOwner

(

)

const

Returns the actor that owns this component.

Returns

The actor that owns this component.

GetUpdateOrder()

int Component::GetUpdateOrder

(

)

const

Returns the update order of the component. Components with lower update orders are updated first.

Returns

The update order of the component.

OnEnd()

virtual void Component::OnEnd ( )

inlinevirtual

Called when the component is about to be destroyed (during actor destruction). This can be used to clean up or release any resources.

Reimplemented in ColliderComponent, and RenderComponent.

OnStart()

virtual void Component::OnStart ( )

inlinevirtual

Called when the component is initialized (during actor start). This can be used to perform any setup operations for the component.

Reimplemented in ColliderComponent, and RenderComponent.

OnUpdateWorldTrandform()

virtual void Component::OnUpdateWorldTrandform ( )

inlinevirtual

Called when the world transform of the actor is updated. This allows the component to react to changes in the actor's world transform.

SetActive()

void Component::SetActive

(

bool

isActive

)

Sets the active status of the component.

Parameters

isActive

Whether the component should be active or not.

SetOwner()

void Component::SetOwner

(

Actor *

pOwner

)

Sets the actor that owns this component.

Parameters

pOwner

The actor to assign as the owner of this component.

Update()

virtual void Component::Update ( )

inlinevirtual

Called every frame to update the component. This can be used to perform actions that need to be updated periodically.

Reimplemented in AnimatedSpriteRenderComponent, EditorController, and MoveComponent.

Member Data Documentation

mOwner

Actor* Component::mOwner = nullptr

protected

The actor that owns this component.

---

The documentation for this class was generated from the following files:

• Engine/GameTool/Component.h
• Engine/GameTool/Component.cpp
