Base class for collider components used in physics and collision detection. Inherits from Component for lifecycle management and DebugRenderInterface for debug visualization. More...

#include <ColliderComponent.h>

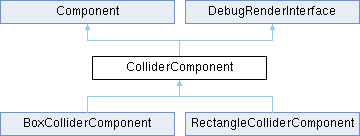

Inheritance diagram for ColliderComponent:

Public Member Functions
	ColliderComponent (Actor *pOwner)
	Constructor for ColliderComponent.

void	OnStart () override
	Called when the component starts. Registers the component for debug rendering and adds it to the physics system.

void	OnEnd () override
	Called when the component ends. Unregisters the component from debug rendering and removes it from the physics system.

virtual bool	Collision (const ColliderComponent *pComponent)=0
	Pure virtual method to check collision with another collider component. Must be implemented by derived classes (e.g., BoxCollider, SphereCollider).

Public Member Functions inherited from Component
	Component (Actor *pOwner, int pUpdateOrder=100)
	Constructor for Component.

virtual	~Component ()

virtual void	Update ()
	Called every frame to update the component. This can be used to perform actions that need to be updated periodically.

virtual void	OnUpdateWorldTrandform ()
	Called when the world transform of the actor is updated. This allows the component to react to changes in the actor's world transform.

void	SetActive (bool isActive)
	Sets the active status of the component.

void	SetOwner (Actor *pOwner)
	Sets the actor that owns this component.

int	GetUpdateOrder () const
	Returns the update order of the component. Components with lower update orders are updated first.

Actor *	GetOwner () const
	Returns the actor that owns this component.

Public Member Functions inherited from DebugRenderInterface
virtual void	DebugRender (IRenderer *renderer)=0

Public Attributes
Color	mColor { 255,0,0,255 }
	Debug rendering color for the collider (default: red).

Additional Inherited Members
Protected Attributes inherited from Component
Actor *	mOwner = nullptr
	The actor that owns this component.

Detailed Description

Base class for collider components used in physics and collision detection. Inherits from Component for lifecycle management and DebugRenderInterface for debug visualization.

Constructor & Destructor Documentation

◆ ColliderComponent()

ColliderComponent::ColliderComponent ( Actor * pOwner )

Constructor for ColliderComponent.

Parameters

pOwner The actor that owns this collider component.

Member Function Documentation

◆ Collision()

virtual bool ColliderComponent::Collision ( const ColliderComponent * pComponent )

pure virtual

Pure virtual method to check collision with another collider component. Must be implemented by derived classes (e.g., BoxCollider, SphereCollider).

Parameters

pComponent Pointer to another collider component to check collision against.

Returns: True if a collision is detected, false otherwise.

Implemented in BoxColliderComponent, and RectangleColliderComponent.

◆ OnEnd()

void ColliderComponent::OnEnd ( )

overridevirtual

Called when the component ends. Unregisters the component from debug rendering and removes it from the physics system.

Reimplemented from Component.

◆ OnStart()

void ColliderComponent::OnStart ( )

overridevirtual

Called when the component starts. Registers the component for debug rendering and adds it to the physics system.

Reimplemented from Component.

Member Data Documentation

◆ mColor

Color ColliderComponent::mColor { 255,0,0,255 }

Debug rendering color for the collider (default: red).

The documentation for this class was generated from the following files:

Engine/GameTool/Collision/ColliderComponent.h
Engine/GameTool/Collision/ColliderComponent.cpp
